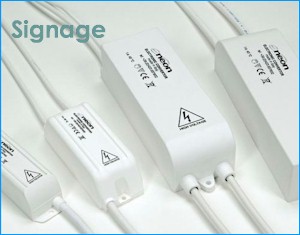

BELLO is a self adjusting convertor for all kind of signs and for a wide range of neon tubes. Bello has a built in earth leakage and open circuit switch. Available with dimmer knob (models 2010, 9025, 4550) or remote brightness selector (3 steps only for type 3010 and 6550). Upon request also with in line rocker switch, plug or self blinking.



SLIM is a new generation of electronic convertors suitable for SLIM lamps or T10 / T 12 tubes. They are provided with built in power factor corrector and earth leakage, open circuit, spikes and overload protection. The output current is kept regardless of the input voltage, features very useful for lighting box.





MAX convertors for cold cathode lamps with a built in power factor corrector and earth leakage, open circuit, spikes and overload protection. Also available with external dimmer , connection to the Monitor and flash.



MINIBLAU is electronic convertors of extreme small size but high power factor, with rated output voltage not exceeding 1kV. Suitable for lighting products not requiring specialist installation techiques and material.





DIMMER - Wall mounted dimmer (35mm wide) for brightness adjustment of Bello 6550/3010 or Max 4010, from 30% to 100%

REMOTE MONITOR - is a remote unit for the warning by LED of the failure occured on the transformers. It monitors the units and their protection devices, showing which convertor leaks and allows the dimming of the brightness (optional) through a potentiometer.





-Total 4 Channel, and each control up 10 convertors
- Adjustable brightness from 30% to 100%
- Max distance from converters 30m
- ABS watertight enclosure IP55.
- Tripolar terminals for each convertor
- Red LED for warning
- Green LED for power supply
- Size 118x157x74 mm


 Installation example

GIOCHI LUCE - 4 channel sequencer for convertors and stray field transformers in a watertight enclosure, also available with built in double pole Earth Leakage Switch according to EN50107.



 Specification



STAR - It allows a quick and easy connection of the main supply cables, avoiding unsafe connections often causing fire hazard or risk of overheating.


 Specification
