Automatic Bending Machine for Liquid Acrylic （LA) Letters |
|
FEATURES: |
| . Lower your production cost, speed up your order and increase your revenue. |
| · Automatic Bending machine, fabricate channel letters with returns with all kinds of materials such as Aluminum Profile, Stainless, and Gavanized Steel. |
| · 360 V-cutting System can fabricate any designs of letters by V-Cutting in/outside of materials. |
| · Precise servo control system to ensure precision and accuracy of the product |
| · MBM software is easy to use and can support CAD file and file formats (AI, EPS, DXF, DWG, etc) |
| · Multi Language Operation (English, Korean, Japanese, Chinese, Spanish, French, etc) |
| |
SPECIFICATIONS: |
| Section |
MBM80-VB |
MBM120-VB |
| Material Specification |
Thickness Aluminum : 0.6 up to 2.0mm(Option tool)
Stainless : 0.6 up to1.2mm |
Thickness Aluminum : 0.6 up to 2.0mm(Option tool)
Stainless : 0.6 up to 1.2mm |
| Height |
25mm up to 80mm |
25mm up to 120mm |
| Bending |
Max Bending Angle : 110° / with V-cutting 110° |
Max Bending Angle : 110° / with V-cutting 110° |
| Optional System |
V-Cutting system |
V-Cutting system |
| Dimensions(Machine) |
2,250(W) x 1,000(D) X 1,600(H) |
2,400(W) x 1,200(D) X 1,970(H) |
| Dimensions(Multi Material Loader) |
2,000(W) x 1,200(D) x 1,200(H) |
2,000(W) x 1,200(D) x 1,200(H) |
| Power Requirements |
Single phase 220V, 50~60Hz, 15Amp / 5KVA |
Single phase 220V, 50~60Hz, 15Amp / 5KVA |
| File Format |
AI, EPS, DXF, DWG,
|
AI, EPS, DXF, DWG,
|
| Air |
6 bar / 87psi, 1CFM |
6 bar / 87psi, 1CFM |
| Weight |
650kg |
1,000kg |
| |
Material |
| Material Types |
Thickness(mm) |
Height(mm) |
MBM80 |
MBM80-VB |
MBM120-VB |
Bending Cutting |
Bending Cutting |
Bending Cutting |
 |
Aluminum |
0.6~1.2
(up to 2.0 with
optional tool) |
25~160 |
|
V-Cutting
(wheel) |
V-Cutting
(wheel) |
|
Stainless steel |
0.6~1.2 |
25~160 |
|
● |
● |
|
Galvanized steel |
- |
25~160 |
|
● |
● |
 |
Channelume
(LET-R-EDGE) |
0.55
(fixed) |
80~130
(fixed) |
● |
● |
● |
| |

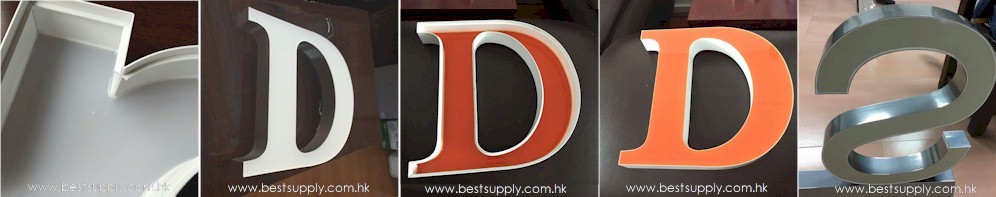

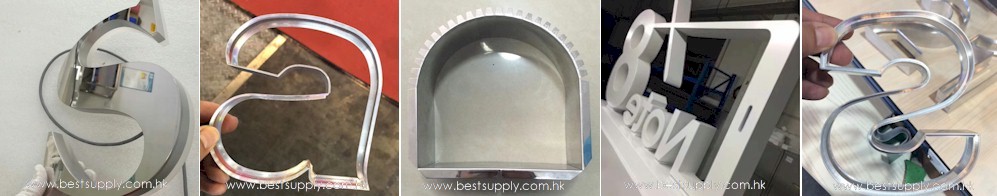

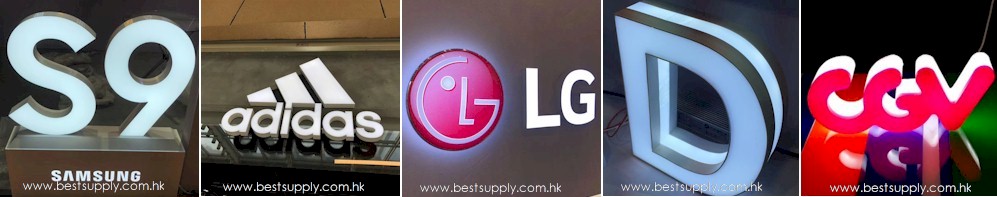

| Custom signage: Durable LED Liquid Acrylic Letters, NO craking, No discoloration! for indoor and outdoor use. |
| |
(We supply Liquid Acrylic Letters to customers worldwide, we welcome your enquiry !) |
|
 |
 |
| |
|
|
| |
|
|
|
| |
|
 |
